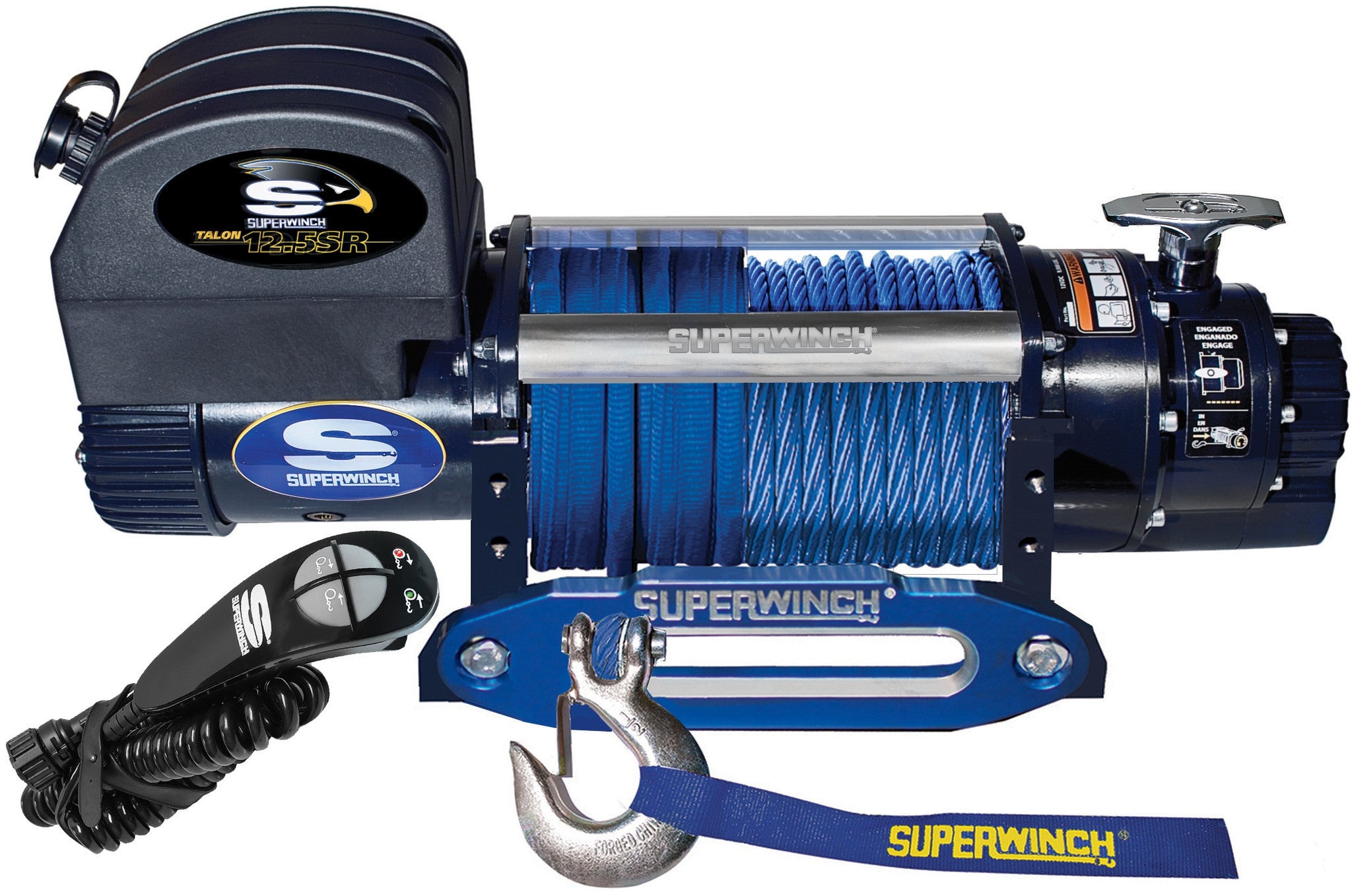

superwinch winch-talon 12.5 sr 12v, 1612201 synthetic rope
$ 1,129.95
Free Shipping on this winch! Meet the new leader in high-performance winching: TALON SERIES. Designed and Engineered by Superwinch, the TALON raises the bar on what you can expect from your synthetic winch. SuperwinchExperts has been so impressed by these winches, we can't wait to tell you all about them:
Bold Features
- 12VDC winch, 12,500 lb capacity
- Blue Anodized Aluminum Hawse
- 80' of 3/8" Dyneema Synthetic Rope with Heavy Duty Latched Hook and Rope Thimble
- 15' ergonomically sealed handheld remote with coiled cord that retracts to 4'
- "Dual Stop" 100% load holding brake design provides zero drag on cable
- Industry-leading Limited Lifetime/3-Year Electrical Warranty
Seals
The best sealed winch in history: that's a fact and a statement they don't make lightly. You won't find a better sealed winch, period. From end-to-end, they've sealed this winch from the elements and it meets the IP67 rating for watertightness. Go ahead; mount it on your yellow submarine.
Fast Winch
The TALON is the cheetah of the winch world. Rolling at a blazing 62 feet per minute, the TALON sets the mark to beat and does so at a low 75 amp draw (5.2 and 6.0 hp motors). Did you just hear that? That's the sound of the competition's jaws dropping.
Super Solenoid
What's the weakest part of the winch? Solenoid, right? Wrong, at least on the new TALON. The Solenoid on the Superwinch TALON is the industry's most advanced kit, sealed, vented, stabilized and submersible, some say they've gone too far. Anyone ever told you that?
Superwinch is so gung-ho on our VS4 Solenoid, they've backed with the industry's best warranty: a full 3 years. And that's on all electronics.
Smart Remote
Think all remotes are the same? Then you've never met the TALON Ergo Remote. Designed by Superwinch engineers, this remote is packed with features you won't find anywhere else but Superwinch:
- LED Flashlight
- 15' of coiled cord – makes stashing the remote a breeze
- Soft-touch control for winch-in and winch-out operation
- Sealed from dust, water, mud. Meets IP67.
Synthetics
Did you know that an average cast drum will crack and fail under the normal loads with a Synthetic Rope? That's why you'll find only steel drums that have been specially engineered by Superwinch to handle the unique loads synthetic rope yield on every TALON SERIES winch built.
We at SuperwinchExperts love synthetic, but only good quality, certified rope. The stuff others use is junk and we've seen the testing to prove it. Believe the phrase, "you get what you pay for" when it comes to synthetic rope. Why risk it?
Superwinch only uses Dyneema certified synthetic rope because testing shows it's the best. Cutting a corner on a rope? We believe you deserve better.
Superwinch further illustrates their knowledge by moving the 100% load holding brake out of the drum, eliminating synthetic rope-damaging heat build up. Better rope, better design, better engineering; that's Superwinch.
Details
You'll find the beauty of the TALON design in the smallest of details. Things like:
- Laser-etched aerodynamic tie bars provide better clearance over the drum
- Clockable (in 45 degree increments) gearbox meaning you have the flexibility of rotating the freespool knob giving you some freedom.
Covered by a Limited Lifetime Warranty, which includes an industry-first 3-year warranty on all electrical components, the absolute BEST in the INDUSTRY!
Specifications
| Rated Line Pull | 12,500 lbs (5,670 kgs) |
| Motor | Sealed 6 hp (4.8 kw) Series Wound |
| Gearing | 2-Stage Planetary and 2-Stage Spur |
| Gear Ratio | 148:1 |
| Solenoid | Vented, Sealed Submersible Solenoid with 3-Year Warranty |
| Clutch | Free-spooling Clutch/Pull and Turn |
| Brake | Automatic/100% Load Holding (outside of drum) |
| Rope | Synthetic Rope 3/8" x 80' (9.5mm x 24.4m) |
| Hook | Heavy Duty/Clevis Pinned/Latched |
| Fairlead | Anodized Blue Aluminum Hawse with Engraved Superwinch Logo |
| Remote | 15' Sealed Ergonomic Hand-held with Coiled Cord |
| Dimensions | 24.57" L x 6.20" D x 10.95 "H (624.20mm L x 157.50mm D x 278.15mm H) |
| Drum Diameter | 2.5" (63.5mm) |
| Drum Length | 8.75" (222.2mm) |
| Mounting Bolt Pattern | 10" x 4.5" (254mm x 114.3mm) |
| Installed Weight | 68 lbs (31 kgs) |
| Shipping Weight | 81 lbs (37 kgs) |
| Warranty | Limited Lifetime Warranty/3-Year Electrical |
| UPC | 0 22705 16901 1 |
| Line Pull: 0 lbs | 75 Amps Motor Draw / 62 FPM (18.9 MPM) Line Speed |
| Line Pull: 12,500 lbs | 530 Amps Motor Draw / 3.25 FPM (.99 MPM) Line Speed |
