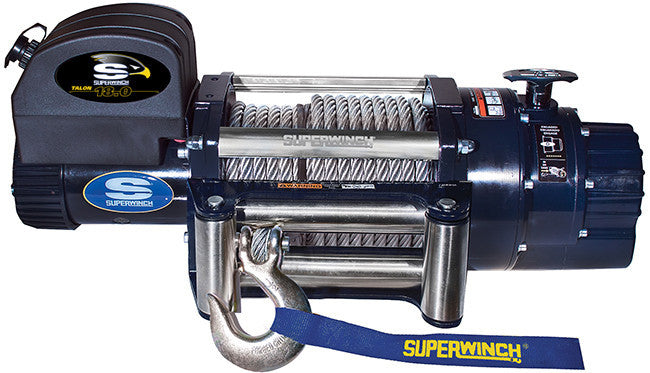

superwinch winch-talon 18.0 12v, 1618200
$ 1,199.99
Free Shipping on this winch! Talon Heavy Duty Series Advantage - Speed and power make our Talon Series winches ideal for recovery and super duty applications. Available in 14,000 and 18,000 lbs with either steel or synthetic ropes. These 2-stage planetary-2 stage spur gear winches are packed with essential and extra practical features for efficient, reliable, and safe winching operations under the heaviest loads.
Best Features
- 12VDC winch, 18,000 lb capacity
- Stainless Steel Roller Fairlead
- 90' of 1/2" Wire Rope with Heavy Duty Latched Hook and Rope Thimble
- 15' ergonomically sealed handheld remote with coiled cord that retracts to 4'
- "Dual Stop" 100% load holding brake design provides zero drag on cable
- Covered by an industry-leading Limited Lifetime /3 Year Electrical Warranty
Seals
The best sealed winch in history: that's a fact and a statement they don't make lightly. You won't find a better sealed winch, period. From end-to-end,they've sealed this winch from the elements and it meets the IP67 rating for watertightness. Go ahead; mount it on your yellow submarine.
Fast
The TALON is the cheetah of the winch world. Rolling at a blazing 25 feet per minute (fast for a big winch), the TALON sets the mark to beat and does so at a low 75 amp draw (5.2 and 6.0 hp motors). Did you just hear that? That's the sound of the competition's jaws dropping.
Solenoid
What's the weakest part of the winch? Solenoid, right? Wrong, at least on the new TALON. The Solenoid on the Superwinch TALON is the industry's most advanced kit, sealed, vented, stabilized and submersible, some say they've gone too far. Anyone ever told you that?
Superwinch is so gung-ho on our VS4 Solenoid, they've backed with the industry's best warranty: a full 3 years. And that's on all electronics.
Remote
Think all remotes are the same? Then you've never met the TALON Ergo Remote. Designed by Superwinch engineers, this remote is packed with features you won't find anywhere else but Superwinch:
- LED Flashlight
- 15' of coiled cord – makes stashing the remote a breeze
- Soft-touch control for winch-in and winch-out operation
- Sealed from dust, water, mud. Meets IP67.
Synthetics
Did you know that an average cast drum will crack and fail under the normal loads with a Synthetic Rope? That's why you'll find only steel drums that have been specially engineered by Superwinch to handle the unique loads synthetic rope yield on every TALON SERIES winch built (even this one, so you can upgrade in the future).
We at SuperwinchExperts love synthetic, but only good quality, certified rope. The stuff others use is junk and we've seen the testing to prove it. Believe the phrase, "you get what you pay for" when it comes to synthetic rope. Why risk it?
Superwinch only uses Dyneema certified synthetic rope because testing shows it's the best. Cutting a corner on a rope? We believe you deserve better.
Superwinch further illustrates their knowledge by moving the 100% load holding brake out of the drum, eliminating synthetic rope-damaging heat build up. Better rope, better design, better engineering; that's Superwinch.
Details
You'll find the beauty of the TALON design in the smallest of details. Things like:
- Laser-etched aerodynamic tie bars provide better clearance over the drum
- Clockable (in 45 degree increments) gearbox meaning you have the flexibility of rotating the freespool knob giving you some freedom.
Covered by a Limited Lifetime Warranty, which includes an industry-first 3-year warranty on all electrical components, the absolute BEST in the INDUSTRY!
*Note, the roller fairlead does not attach directly to the winch and requires a mounting bracket as illustrated on page 4 of the Talon Installation Guide; the images are for illustration purposes only.
Specifications
| Rated Line Pull | 18,000 lbs (8,165 kgs) |
| Motor | Sealed 6 hp (4.8 kw) Series Wound |
| Gearing | 2-Stage Planetary and 2-Stage Spur |
| Gear Ratio | 346:1 |
| Solenoid | Vented, Sealed Submersible Solenoid with 3-Year Warranty |
| Clutch | Free-spooling Clutch/Pull and Turn |
| Brake | Automatic/100% Load Holding (outside of drum) |
| Rope | Wire Rope 1/2" x 90' (13mm x 27.43m) |
| Hook | Heavy Duty/Clevis Pinned/Latched |
| Fairlead | Heavy Duty 4-Way Roller Fairlead with Stainless Steel Rollers |
| Remote | 15' Sealed Ergonomic Hand-held with Coiled Cord |
| Dimensions | 27.5" L x 8.46" D x 11.57 "H (698.5mm L x 215.0mm D x 294.21mm H) |
| Drum Diameter | 3.5" (88.9mm) |
| Drum Length | 8.75" (222.2mm) |
| Mounting Bolt Pattern | 10" x 4.5" (254mm x 114.3mm) & 10" x 6.5" (254mm x 165.1mm) |
| Installed Weight | 172 lbs (78 kgs) |
| Shipping Weight | 185 lbs (83.9 kgs) |
| Warranty | Limited Lifetime Warranty/3-Year Electrical |
| UPC | 0 22705 16907 3 |
| Line Pull: 0 lbs | 75 Amps Motor Draw / 25 FPM (7.62 MPM) Line Speed |
| Line Pull: 18,000 lbs | 415 Amps Motor Draw /2.5 FPM (.76 MPM) Line Speed |
