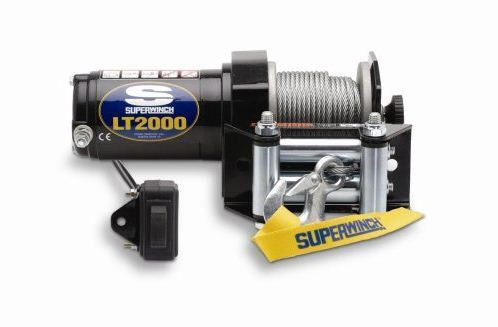

LT 2000 by Superwinch 1120210 features pull and turn freespool

winch-lt2000 atv 12v, 1120210

$ 104.99

Classic and proven the LT 2000 ATV takes upon one of Superwinch's most copied designs and ups the ante by adding in ATV specfic features such as the handbar rocker switch, roller fairlead, swivel hook and shackle - everything you need to begin your ATV adventure. May require mount plate to fit your vehicle, see mount plate application chart for details.

Features:
  • Heavy duty latched hook with rope thimble
  • Rated line pull (bottom layer) of 2,000 lbs (907 kg)
  • Low-amp, permanent magnet motor
  • Pull-and-turn freespooling clutch
  • Bonus pulley block and D shackle
Powerful, versatile, and easy to use, the Superwinch LT2000 ATV winch can be permanently mounted or used as a portable winch with optional quick-connect wiring and mounting kits. Full metal planetary gear train provides strong yet quiet operation. Several additional features, including dynamic braking, circuit breaker, and low amp draw system, ensure big performance at a surprisingly affordable price.

High Efficiency, Low Amp Draw Motor
Providing efficient pulling power whenever and wherever you need it, the Superwinch LT2000 winch features a high efficiency, low amp draw sealed permanent magnetic motor. This combined with the unit's solenoid, which disconnects your winch's electrical system from the battery when your vehicle is turned off, as well as circuit breaker protection ensures that users will always have all the power that they need without taking a toll on their ATV's battery.

Dynamic Braking
Safety should always be an important consideration with any piece of machinery. With this in mind the bi-directional action of the Superwinch LT2000 ATV winch features dynamic braking of the winch drum to provide the variety of stopping power needed for each job.

Standard Features:

  • Power in and power out.
  • Differential planetary.
  • Pull and turn freespooling clutch.
  • Low amp, permanent magnet motor.
  • Circuit breaker protected.
  • Heavy duty latched hook with rope thimble.
  • Sealed, handle bar mounted rocker switch.
  • Bonus: pulley block and D shackle.

Specifications

Rated Line Pull 2,000 lbs (907 kgs)
Motor 1.0 HP Permanent Magnet
Gearing 1-Stage Planetary
Gear Ratio 153:1
Solenoid Dual Relays and Circuit Breaker Protected
Clutch Free-Spooling, Pull and Turn
Brake Dynamic
Rope Wire Rope 5/32" x 50' (3.9mm x 15.2m)
Hook Permanent/Latched
Fairlead 4-Way Roller
Remote Handle Bar Mounted Rocker Switch
Dimensions 11.0" L x 4.1" D x 4.1" H (285mm L x 105mm D x 105mm H)
Drum Diameter Drum Diameter: 1.25" (31.8mm)
Drum Length Drum Length: 2.83" (72.0mm)
Mounting Bolt Pattern 2 Hole, 3.15" (80mm) on center
Installed Weight 14.2 lbs (6.44 kgs)
Shipping Weight 18.75 lbs (8.5 kgs)
Warranty One-Year Limited Warranty
UPC 0 22705 00265 3
Line Pull: 0 lbs 10 Amps Motor Draw / 10.0 FPM (3.0 MPM) Line Speed
Line Pull: 2,000 lbs 100 Amps Motor Draw / 2.5 FPM (0.8 MPM) Line Speed
